Product Description:

• (R) 4-Piston Billet Monobloc Calipers
• 380x28mm (15'') 2-Piece Discs
• Complete Axle Set
• Pre-Assembled
• All Necessary Hardware Included

INTENDED USE

  Street   Track   Race

___ ___ ___ ___ ___



CALIPER

• Body: Billet Monobloc Radial Mount
• Piston Configuration: 4-Piston
• Piston Design And Insert Type: Inner Pressure Seal / Recessed Dust Boot / Ventilated Stainless Steel Insert

DISC

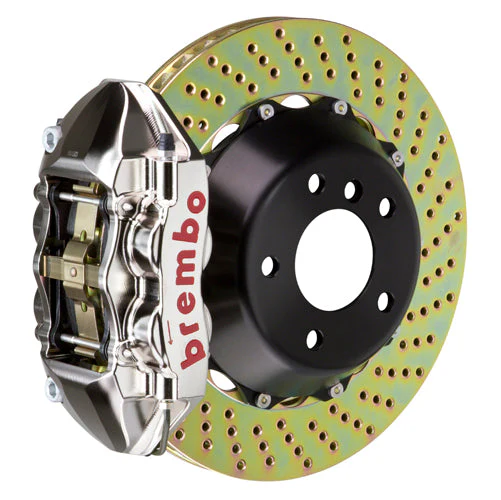

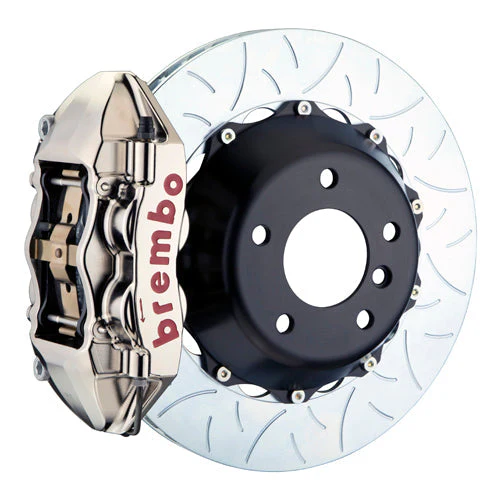

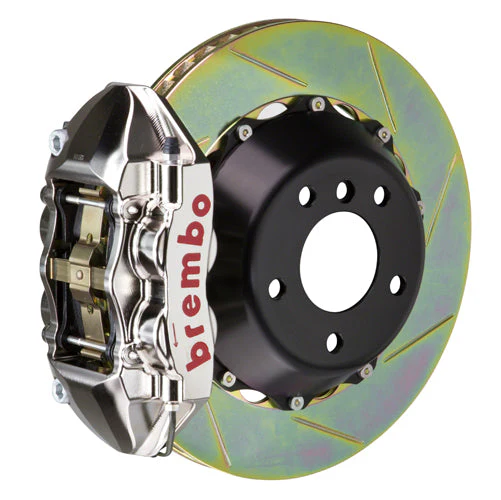

• Type: Cross Drilled, Type 1 Slotted, or Type 3 Slotted
• Material/Finish: Advanced High Carbon Alloy / Corrosion Resistant Plating
• Diameter: 380mm
• Width: 28mm
• Air Gap: 16mm
• Annulus: 54mm
• Construction: 2-Piece Disc Assembly
• Vane Design: Vented Curved 48 Vane
• Disc To Hat Mounting System: Floating D-Bobbin with Anti Rattle Spring

FRICTION MATERIAL

• Pad Compound: Brembo High Performance FM1000
• Pad Volume / Surface Area: 76.4 | 62.1

INCLUDED HARDWARE

• Brake Lines: Proprietary Brembo Stainless Steel Braided Brake Lines by Goodridge
• Mounting Hardware: Brembo Engineered CNC Billet Caliper Adapters - All Necessary Hardware Included For Ease of Installation

WHEEL FITMENT

• How to Measure Wheels for Required Clearance
• Brake Profile Cross Section

Please contact us for custom color options.

Images are for representational purposes only. Actual product may vary.
