Slon Workshop E46 M3 Carbon Front Triangulating Reinforcement Kit

Slon Workshop is proud to introduce their all-new product: the exclusive Front Triangulating Reinforcement Kit for the E46 M3 chassis. They spent months developing and refining this kit to provide something completely unique and highly functional.

The uniqueness of the kit combines exceptional performance and ease of installation. Back to back testing on the E46 M3 showed a 18 to 20% improvement in torsional rigidity over the factory strut brace. No need to weld, cut or drill for installation. Hundreds of hours were spent designing the most complete kit with all parts needed for the installation.

Product Details:

• Overall kit weight: 3.1kg / 6.8 lbs
• OEM parts weight, deleted on installation: 5.6kg / 12.3 lbs
• For reference, the OEM strut brace shows a +1.5% improvement over no strut brace.
• From 18 to 20% difference of improvement depends on your chassis condition and overall chassis modifications
• All of the pieces are made from either carbon fiber or aircraft aluminum machined on CNC to get best stiffness to weight ratio

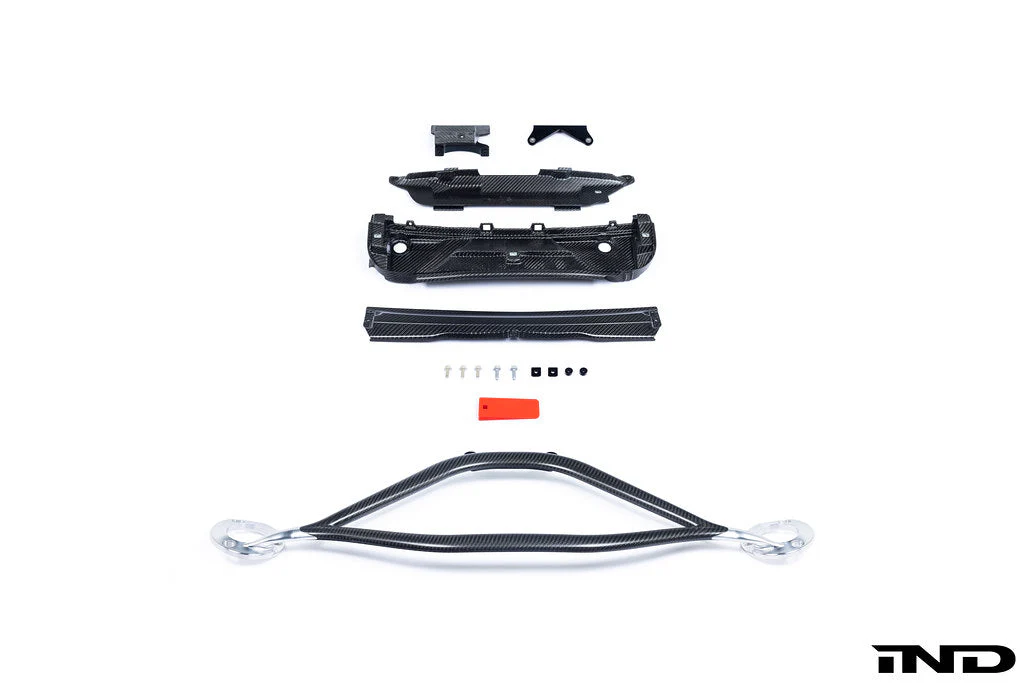

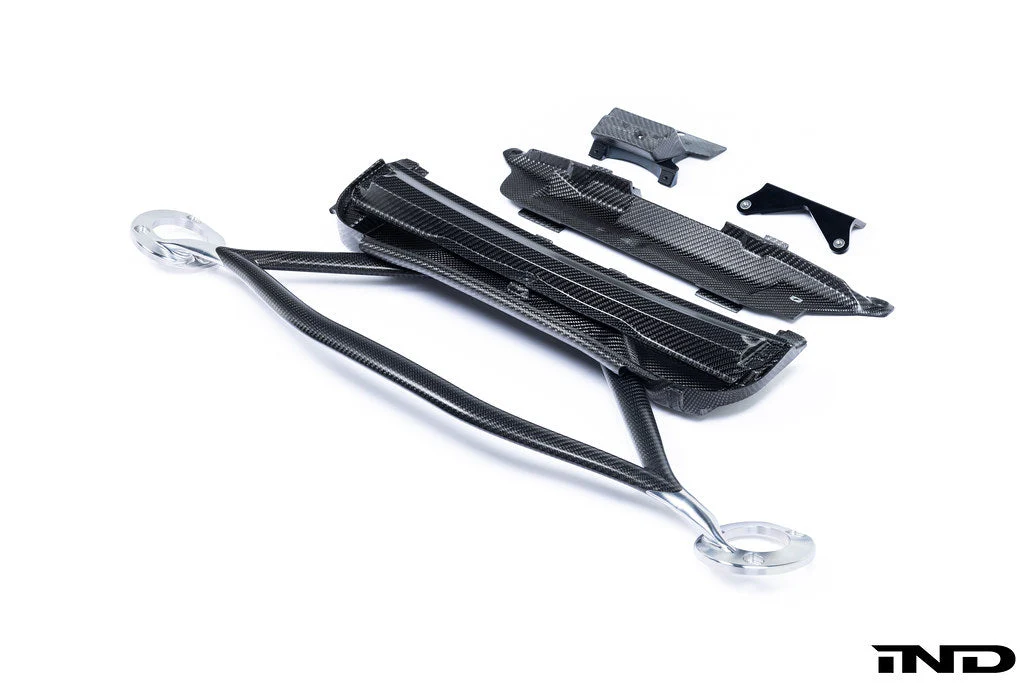

Kit Includes:

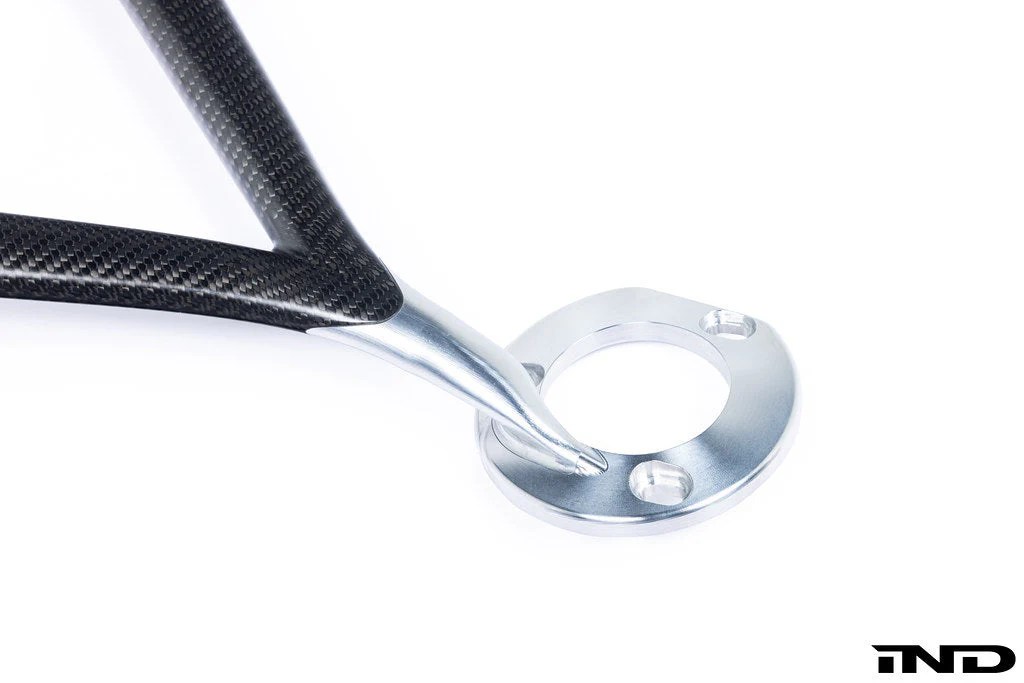

1. Front triangulating strut brace

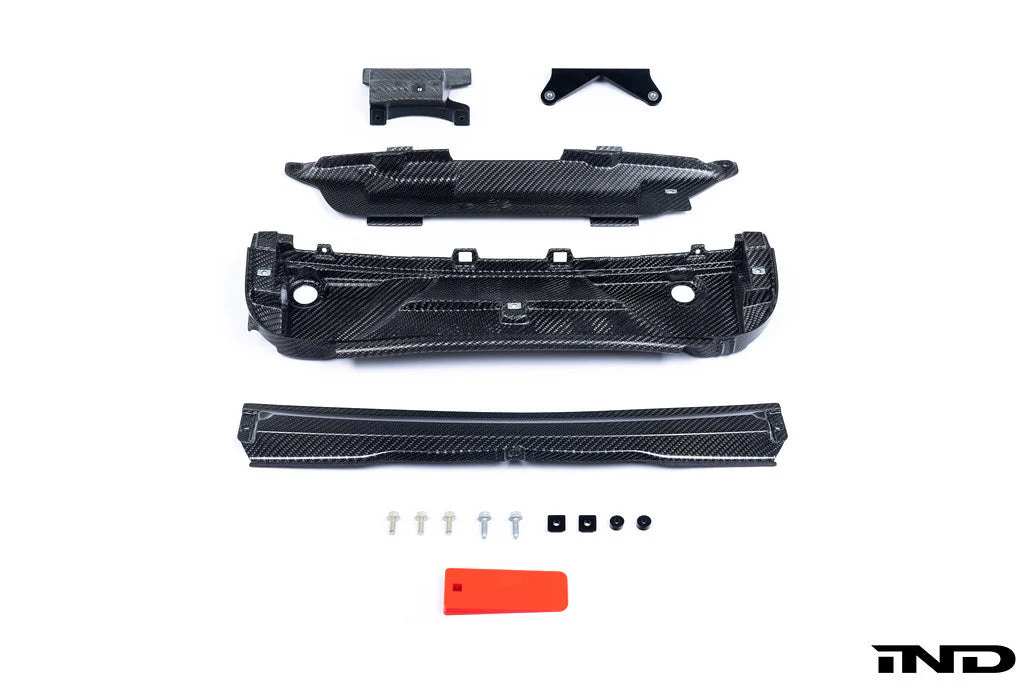

2. Modified design cabin filter case (all 3 center pieces)

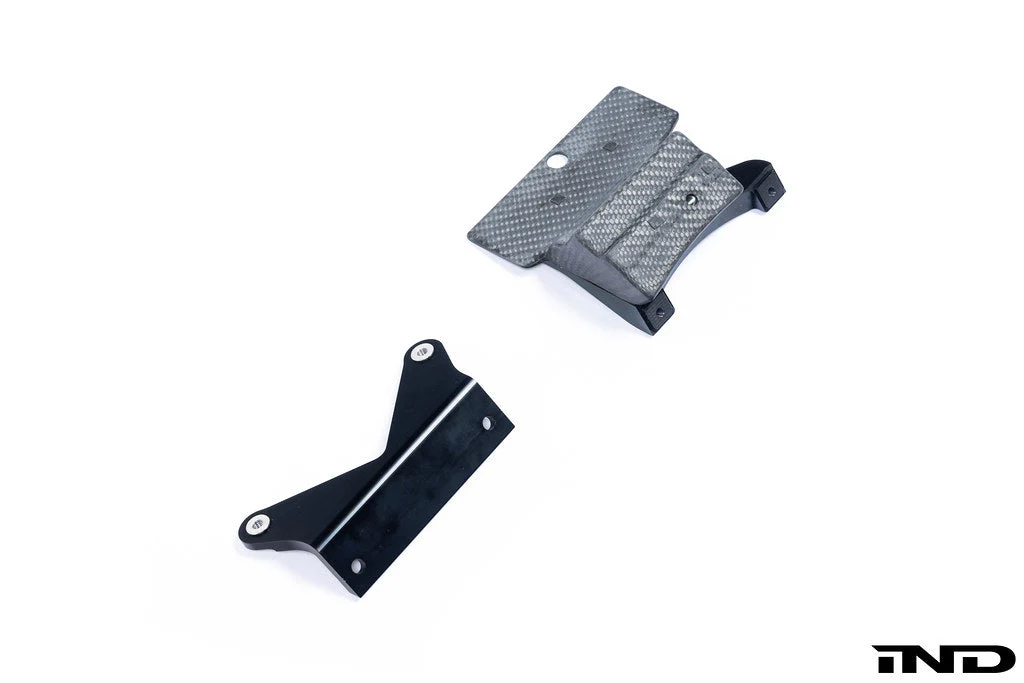

3. Center chassis mount, made in combination of carbon fiber & aluminum (bonds to the chassis)

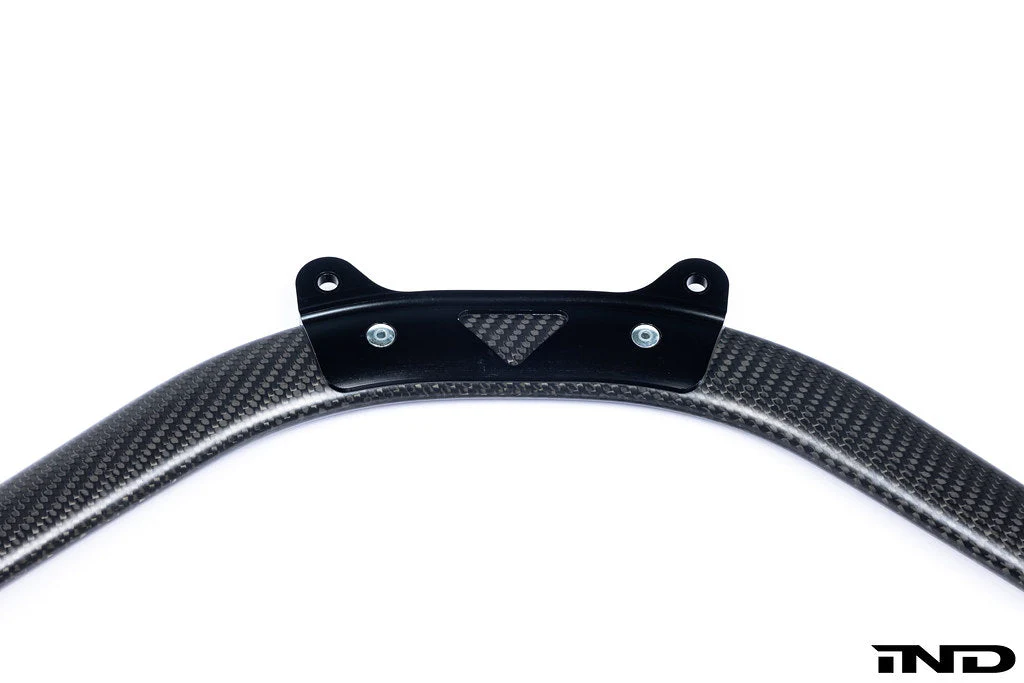

4. Aluminum intermediate center bracket, which allows easy strut brace removal, for maintenance and work in the engine bay
5. High strength bolts for installation and structural glue for center mount bonding
